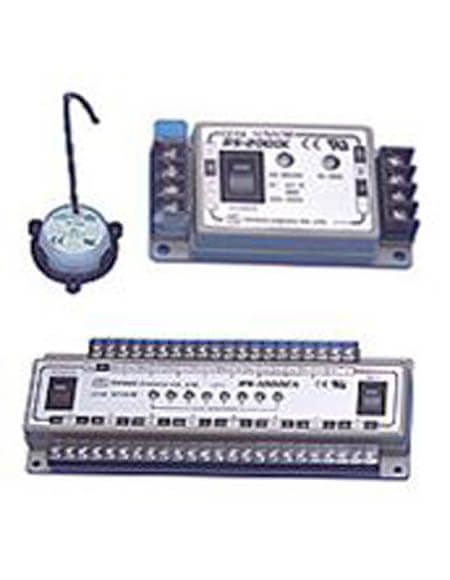

For the advanced performance is added to Standard Liquid Leak Sensor, RS-2000 series has self-diagnostic function for alarming the electric failure or wiring error by short circuit or cut circuit, as realizing ‘Failsafe’ property to the system.
• RS-2000 detects liquid leak, also breaking of wire and short circuit. Then alarm.
• RS-2000 can provide superior safety system than RS-1000 by this diagnostic function.
Model | RS-2000D | RS-2000F | RS-2000P | RS-2000DP | RS-2000FP | RS-2000PP | |
Supply Voltage | 5 DCV ±5% | ||||||
Power Consumption | 20mA max | ||||||
Indication of LED | Red: Leakage , Green: Normal , Off: Power Failure | ||||||
Ambient Temperature | -10~60 deg C (14~140 deg F) | ||||||
Connection with Control Unit |
All Detection Unit must be used with RS-2000C or RS-2000CA Control Unit | ||||||
Material | Case | PVC | PFA | PP | PVC | PFA | PP |
Cable | HT-PVC | FEP | HT-PVC | HT-PVC | FEP | HT-PVC | |
LED LAMP |
Epoxy (Exposed) |
Epoxy (embedded) |
Epoxy (exposed) |
Epoxy (embedded) |
|||
Water Proof | Silicon Stuffed |
Sealed Silicon Stuffed |
Silicon Stuffed |
Sealed Silicon Stuffed |
|||
Weight | Appx,40g | Appx,50g | Appx,40g | Appx,50g | |||
Absorbent Paper | Required | Not Required | |||||
Selectable Bracket | P/N-6417, P/N-6418, P/N-6419 | P/N-6416, P/N-6420B |
