RS-3000Series
By optical detecting principle, most all kinds of liquid can be detected quickly.
No adjustment is required for the sensor, then very few risk for setting error Versatile on performance, and low cost on its expense for both of human and material.
RS-3000
Quick Detection for variety of liquid. (NPN OUTPUT)
• Quick Detection for variety of liquid, even low viscosity without absorbent paper.
• By the featured double sensing devices, incorrect position of the sensor is alarmed.
• Body fabricated by PFA, which allows use with most liquids and chemicals, and suitable for use in varied applications, particularly chemical blend and dispenser.
Specification
After leak detection, simple wipe the detection surface, much easier process than with detection tape or a liquid absorbing model.
• Body and cable are protected by PFA
• Suitable for export equipment, CE marking, UL certified.

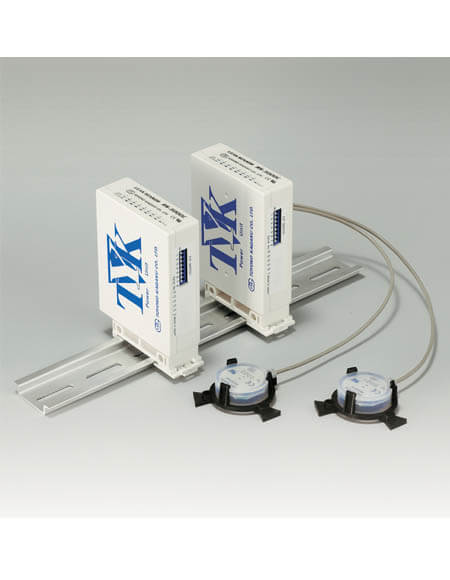

• RS-3000C unit has DIN rail installation feature without auxiliary parts
• Easily viewable green LED signifies normal operations when red LED turns on, Liquid is detected and output is shut off.
-
RS-3000 Series Detection Unit
| Model | RS-3000FA | RS-3000FAP | |
| Voltage | DC12V to DC24V (±10%) | ||
| Current | 20mA or below | ||
| LED Display | Normal Status : Green Leakage Alarm :Red Wrong position Alarm: Red |
||
| Output | NPN transistor open collector, 50mA max, Normal: ON | ||
| Ambient Temp | -10~60°C | ||
| Material | Case | PFA | |
| Cable | FEP, 3-wire sheath | ||
| LED | Epoxy resin (embedded in the case) | ||
| Water Protect | Sealed, Equivalent IP67(IEC) | ||
| Weight | Approx. 40g | ||
| Absorbent Paper | Use | Not Use | |
| Bracket | P/N-6440(PVC) | P/N-6430(PVC) | |
RS-3500
Quick Detection for variety of liquid. (PNP OUTPUT)
• PNP model Developed for the U.S.A market
• It’s possible to use as the integrated monitor, which numerous Detectors connect to Control unit (RS-3500), or as the Alarm monitoring system, which numerous detect connect to PLC.
• Body of RS-3500 (Control Unit) also is fabricated by PFA, which allows use with most liquids and chemicals, and suitable for use in varied applications, particularly chemical blend and dispenser.
Specification
After leak detection, simple wipe the detection surface. Much easier process than with detection tape or a liquid absorbing model.
• Body and cable are protected by PFA
• Suitable for export equipment, CE marking, UL certified.
• RS-3000C unit has DIN rail installation feature without auxiliary parts
• Easily viewable green LED signifies normal operations when red LED turns on, Liquid is detected and output is shut off.
-
RS-3500 Series Detection Unit
| Model | RS-3500FA | RS-3500FAP | |
| Voltage | DC12V to DC24V (±10%) | ||
| Current | 20mA or below | ||
| LED Display | Normal Status : Green Leakage Alarm :Red Wrong position Alarm: Red |
||
| Output | PNP transistor open collector, 50mA max, Normal: ON | ||
| Ambient Temp | -10~60°C | ||
| Material | Case | PFA | |
| Cable | FEP, 3-wire sheath | ||
| LED | Epoxy resin (embedded in the case) | ||
| Water Protect | Sealed, Equivalent IP67(IEC) | ||
| Weight | Approx. 40g | ||
| Absorbent Paper | Use | Not Use | |
| Bracket | P/N-6440(PVC) | P/N-6430(PVC) | |
