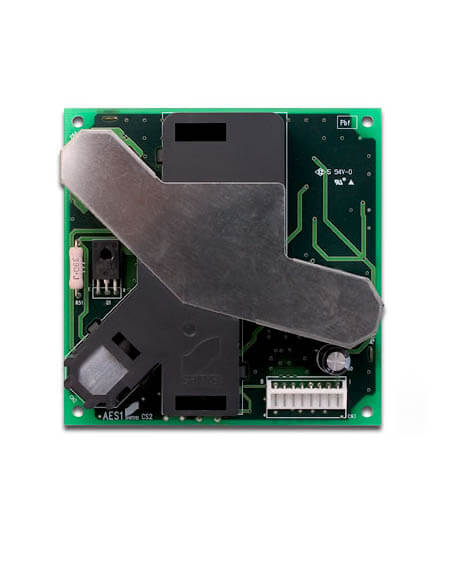

AES1- 05N Aerosol Sensor Unit
Particulates of 0.5 microns or larger can be monitored.
The aerosol sensor unit can be used to keep optimum driving of filtering equipment related to a clean room depending on actual condition of cleanliness level.
Feature
1. Stable and sensitive detection for Particulates of 0.5 microns and larger can be monitored.
2. Unique air sampling method using "heater" to generate updraft, preventing choked flow. Suction pump is not necessary.
3. Long life laser. 20,000 hr
4. Compact size and low cost.
Applications
• Clean booth, Fan Filter Unit, Clean Unit etc Clean Room related filtration system.
Specifications
|
Light Source |
Semiconductor Laser |
|
Life (Light Source) |
20,000 h |
|
Detection Method |
Light Scattering |
|
Air Sampling Method |
Using "Heater" to generate updraft. Approx 0.1 L/m. |
|
Min. Detectable Size |
0.5 µm |
|
Detection Range |
100 ~ 100,000 pcs/cf |
|
Operating Condition |
0°C ± 40°C 30% RH ~ 80% RH |
|
Output |
1 kHz Pulse Output |
|
Power Consumption |
300 mA |
|
Input Voltage |
DC12 V ± 10 % |
|
Dimension |
90 x 90 x 23 mm |
|
Weight |
Approx 120 g |
