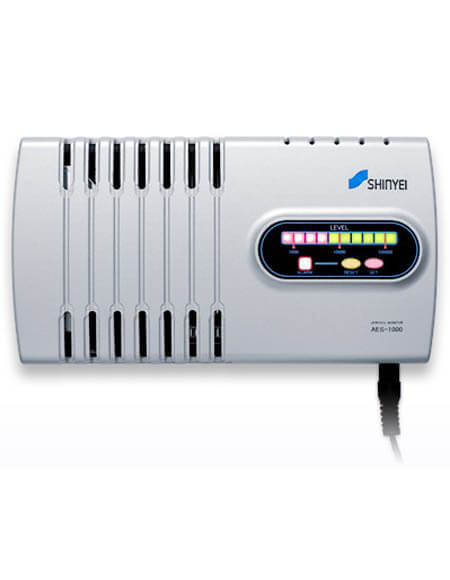

AES1000- 05N Aerosol Monitor
The Aerosol Monitor which has easy-to-read display, and link to Ethernet system, can materialize simplified monitoring of Particulates at multiple locations.
Feature
1. Stable and sensitive detection for Particulates of 0.5 microns and larger. Easy-to-read air cleanliness level, equivalent of ISO5 / Class 100 - ISO8 / Class 100,000.
2. Unique air sampling method using "heater" to generate updraft, preventing choked flow. Suction pump is not necessary.
3. Alarm comes on when the setting level goes beyond the required cleanliness, while monitor gives alarm signal output.
4. Link to Ethernet system with purpose of monitoring at multiple locations.
5. Long life laser, 20,000 hr.
6. Compact and light, easy installation, Low cost.
Applications
• Any place where you need simplified cleanliness level monitoring
Display
Specifications
|
Display |
10 x LED lights shows equivalent of Class 100 ~ Class 100,000 100(ISO5)-1,000(ISO6)-2,000-3,000-5,000-10,000(ISO7)-20,000-30,000- 50,000-100,000(ISO8) |
|
Detection method |
Light Scattering |
|
Sensor |
AES1- 05N Aerosol Sensor |
|
Min. detectable size |
0.5 µm |
|
Air Sampling method |
Updraft airflow generated by built-in heater enables air sampling of approx.0.26 gal per minutes |
|
Cleanliness Class |
From level of equiv. of ISO5 / Class 100 ~ ISO8 / Class 100,000 |
|
Alarm Display |
Alarm LED light comes on when reaching to setting level |
|
Alarm Output |
TTL open collector output in sync with alarm display |
|
Interface |
Ethernet x 1 port |
|
Power Supply |
DC12 V ± 10% 500 mA |
|
Operating Temp/Humidity |
0°C ~ 40°C 30%RH ~ 80%RH |
